API 11AX Ceramic Ball Valve Seat For Sucker Rod Pump

Brand Name : ZS

Model Number : Q15.9-Q63.5

Certification : API 11AX

Place of Origin : China,Henan

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000sets/month

Delivery Time : 15 work days

Packaging Details : Metal or wooden case

Condition : New

Features : Stainless steel, Steel

Dimension(L*W*H) : 12mm

Application : Oilfield

Marketing Type : Ordinary Product

Design : Advanced

Manufacturing Process : Precision

Contact Now

API Standard Cobalt Alloy Valve Seats and Valve Balls

• 1. Valve balls and valve seats are widely used in oil fields.

• 2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
• 3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of

contact.

Main Features

• 1. Material: Stainless steel; Cobalt Alloy, cast; Cobalt Alloy,Tungsten Carbide, Titanium Carbide .

• 2. Standard: API 11AX .
• 3. High resistance against corrosion and oxidation;

API No.	Seat Size	Ball Size
V11-106	1-1/16"	5/8"
V11-125	1-1/4"	3/4"
V11-150	1-1/2"	15/16"
V11-175	1-3/4"	1-1/8"
V11-200	2"	1-1/4"
V11-225	2-1/4"	1-3/8"
V11-250	2-3/4"	1-1/16"
V11-375	3-3/4"	2-1/4"

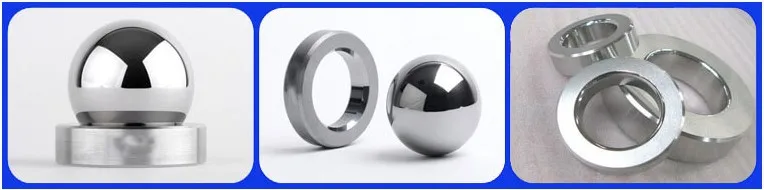

Ceramic Valve Ball Seat

API 11AX Ceramic Ball Valve Seat

Sucker Rod Pump Valve Seat

API 11AX Ceramic Ball Valve Seat For Sucker Rod Pump Images
